Description

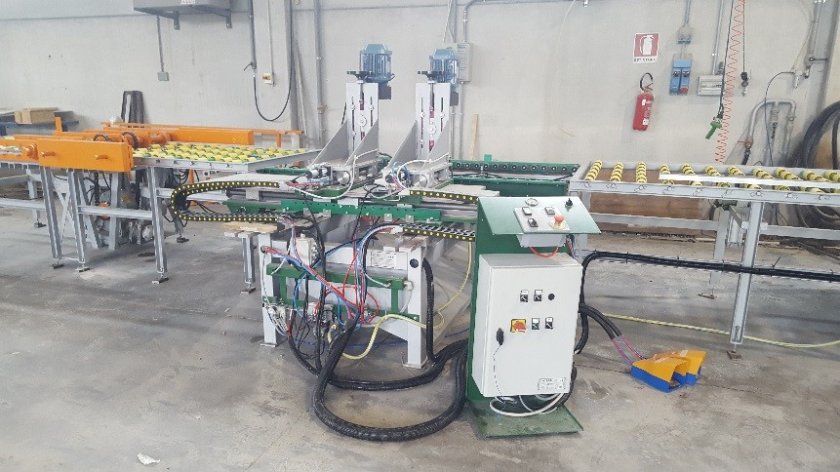

Our drilling machine allows the realization of horizontal cuts interrupted on the side of the slabs in a symmetrical position.

It is designed to allow a fast execution of cuts to be drilled on plates to be used for cladding facades through anchoring.

The machine is ready to be used as delivered.



  • The electrical panel is controlled by PLC;
  • Composed of n.02 2.2 Kw 2-pole drilling units with ISO40 connection;
  • Year of construction: 2018;
  • Cooling of the tools is provided automatically at the beginning of the work cycle and maintained by means of special rotating joints of our construction;
  • All work feeds are adjustable with rapid tool returns;
  • The machine stops automatically at the end of the work cycle.



 OPPORTUNITY NOT TO BE MISSED!!



The Drilling machines is in mint condition, like new, never been used.

It is sold with an important discount. At the time of delivery, one of our experts will test the machine and illustrate its operation.

It’s an unrepeatable opportunity.





TECNICAL FEATURES

size

3425x2200x1650 [mm]

Max distance between horizontal cuts

700[mm]

Min distance between horizontal cut

300[mm]

Max lenght interrupted kerf

700[mm]

Max slab depth

1850 [mm]

 Max grinding wheel diameter for horizontal cutting

100 [mm]

Net weight approx.

1580 Kg

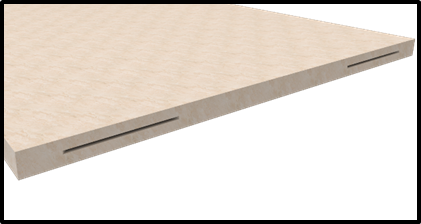

WORKING ACHIEVABLE



f1f2

?>
