Hydro Bag
Hydro Bag

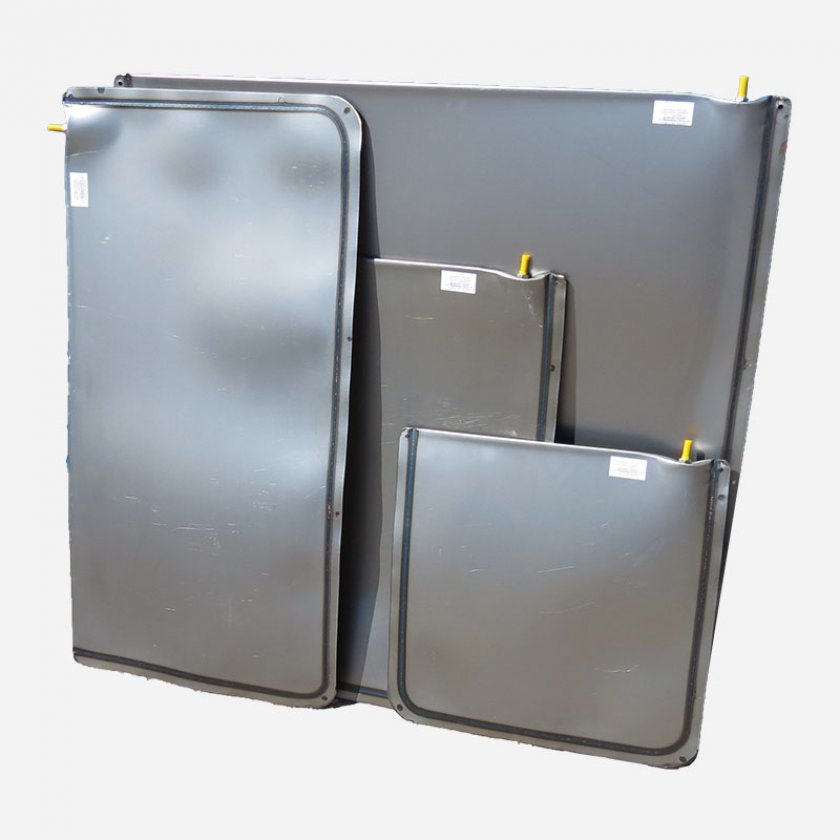

Always looking for innovation, NEWTEC has revolutionized the traditional pillow hydraulic spreader, making it more powerful, convenient and accurate.
The new cushion, covered by an industrial patent, is safer, has 25% more resistance due to soldatura only on 3 sides instead of the usual 4. It has a high deformability.
Code | Dimension [cm] | Weight [kg] | Pressure [bar] | Boost [t] | Divarication [cm] |
HB050X050 | 50 x 50 | 2,9 | 30 | 75 | 20 |
HB050X100 | 50 x 100 | 5,9 | 30 | 150 | 20 |
HB075X075 | 75 x75 | 6,6 | 30 | 169 | 20 |
HB100X100 | 100 x 100 | 11,7 | 30 | 300 | 20 |
HB100X100S | 100 x 100 | 13,2 | 30 | 300 | 30 |
HB150X150 | 150 x 150 | 26,.3 | 30 | 675 | 20 |
Accessories for HYDROBAGS

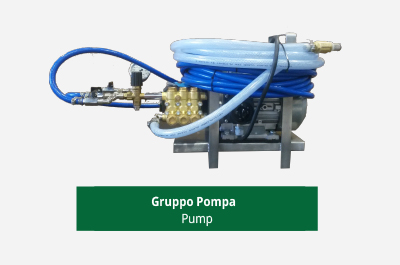

MAIN FEATURES
Motor: 4 Poles –Three-PhaseCapacity: 13,4 lt./min.
Pressure: 117 bar
Power: 4 Kw - 1450
Weight: 40 kg
Dimension: 70 x 50 x 70
Control and safety valve: Calibrate at 50 bar
DESCRIPTION OF THE PUMP PARTS
Pressure Control UnitHight Pressure Pump
Electric Motor with switch and electric cable complete with the plug (CE)
Control and safety valve
Connections and junction faucets
Check pressure gauge
Inlet high pressure piping
Suction piping
Suction filter
INOX support structure
